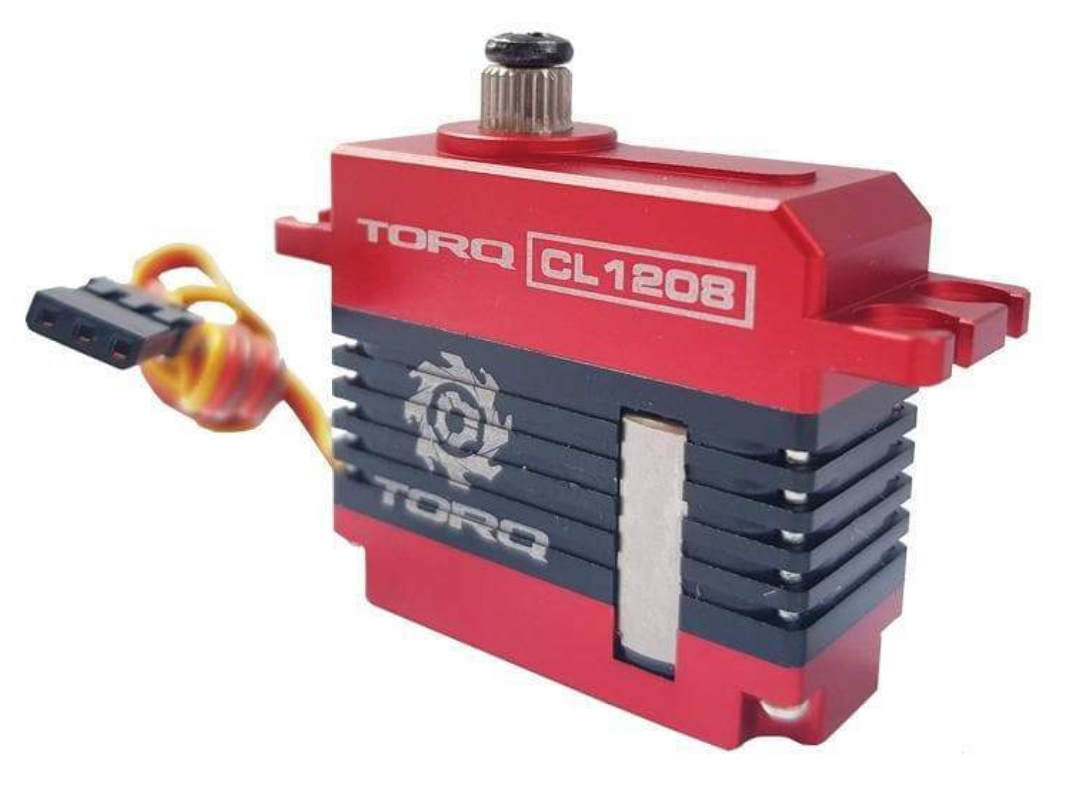

TORQ CL1208 Mini HV Coreless Servo

TORQ CL1208 Mini HV Coreless Servo

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V

Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V

Motor Type: Coreless Motor

Servo Arm Type: Futaba

Weight: 40g

Operating Voltage: 6.0V - 8.4V DC

Working Pulse Width / Frequency: 1520us / 333Hz

Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
