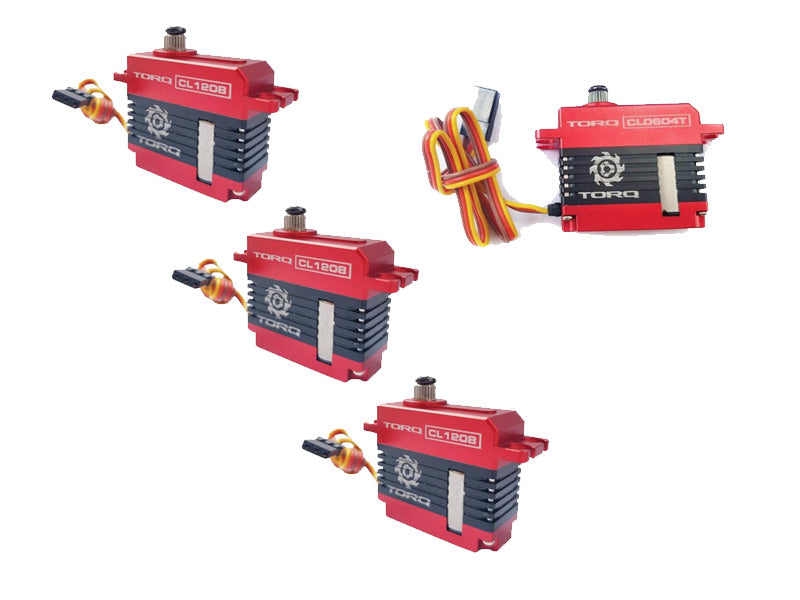

TORQ CL1208 & CL0604T Mini Servo Set
This is a servo set, it includes 3 Torq CL1208 mini cyclic servos and 1 Torq CL0604T mini tail servo.
Cyclic Servo Specs:Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V
Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V
Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
Weight: 40g
Operating Voltage: 6.0V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz
Mini Servo Specs:
Speed:
0.04 sec / 60° @ 8.4V
0.06 sec / 60° @ 6.0V
Torque:
6Kg.cm / 83.32 oz. in. @ 8.4V
4Kg.cm / 55.54 oz. in. @ 6.0V
Working Pulse Width / Frequency: 760us / 560Hz
Weight: 40g
Dimensions: 35.5mm x 15mm x 32.7mm (LxWxH)
Voltage Range: 6.0V - 8.4V
