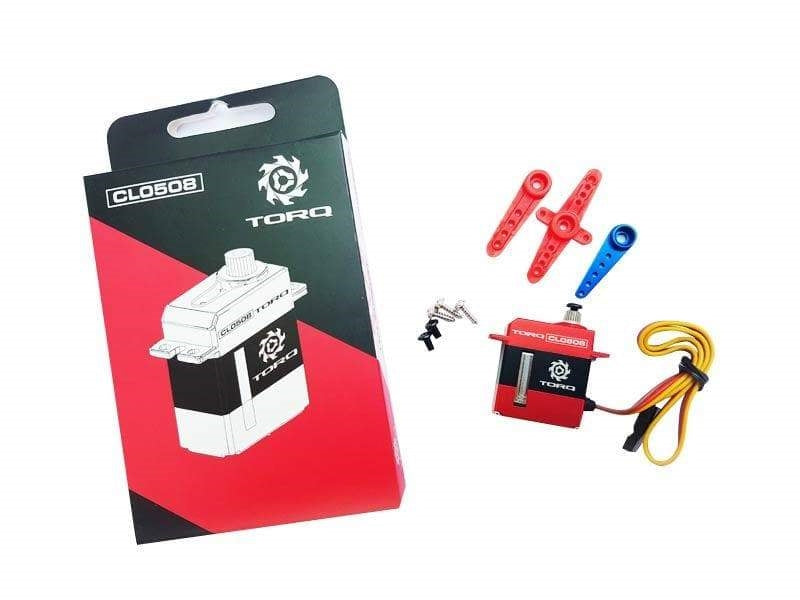

TORQ CL0508 Micro HV Servo

TORQ CL0508 Micro HV Servo

Sale price$40.00
SKU: CL0508
Quantity:

TORQ CL0508 Micro HV Servo - Power, Performance & Pure Domination.
Optimized for second to none power & performance, TORQ brings forth a micro servo that is ready & able to push the boundaries of the micro servo world.

Features:

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the TORQ CL0508 Micro HV Servo utilizes coreless motor technology to obtain peak torque output, equating the TORQ CL0508 Micro HV Servo as one of the most powerful micro servos on the market today.
With a crushing torque rating paired with rapid transit speeds, the TORQ CL0508 Micro HV Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the CL0508 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.
Constructed with fully replaceable high strength steel gears, the TORQ CL0508 Micro HV Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the CL0508 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Transit Speed:
0.07 sec. @ 8.4V

0.08 sec. @ 7.4V

0.09 sec. @ 6.0V

Torque:
6.20Kg.cm (86.10 oz. in.) @ 8.4V

5.20Kg.cm (72.21 oz. in.) @ 7.4V

4.20Kg.cm (58.32 oz. in) @ 6.0V


Dimensions: 23x12x27.5mm (LxWxH)

Weight: 20g


Operating Voltage: 4.8V - 8.4V DC


Working Pulse Width / Frequency: 1520us / 333Hz
