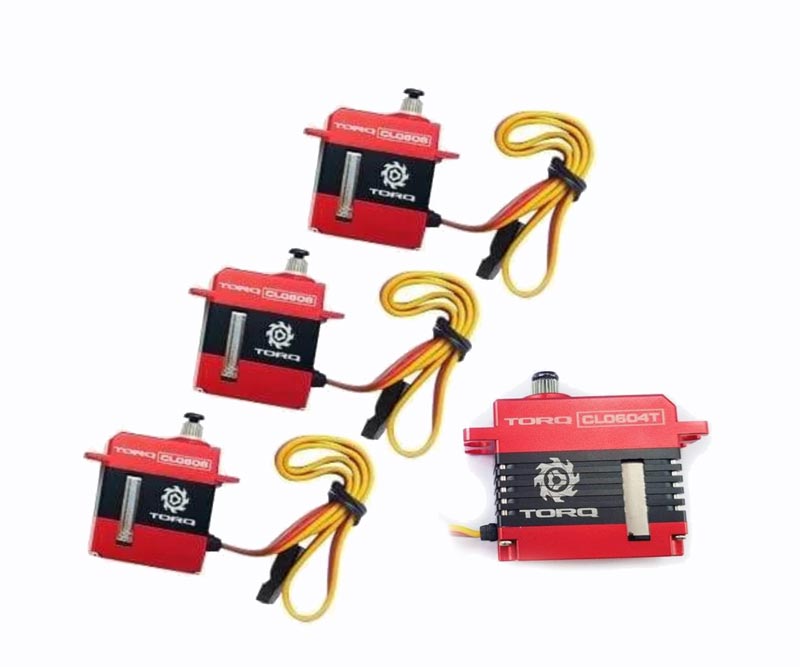

TORQ CL0508 Micro & CL0604T Mini Tail Servo Set

This is a servo set, it includes 3 Torq CL0508 micro servos and 1 Torq CL0604T mini tail servo. The ideal servo set for your Goblin Raw 420!

0.07 sec. @ 8.4V

0.08 sec. @ 7.4V

0.09 sec. @ 6.0V

Torque:
6.20Kg.cm (86.10 oz. in.) @ 8.4V

5.20Kg.cm (72.21 oz. in.) @ 7.4V

4.20Kg.cm (58.32 oz. in) @ 6.0V


Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g

Operating Voltage: 4.8V - 8.4V DC

Working Pulse Width / Frequency: 1520us / 333Hz

Mini Servo Specs:

Speed:
0.04 sec / 60° @ 8.4V
0.06 sec / 60° @ 6.0V

Torque:
6Kg.cm / 83.32 oz. in. @ 8.4V
4Kg.cm / 55.54 oz. in. @ 6.0V

Working Pulse Width / Frequency: 760us / 560Hz
Weight: 40g
Dimensions: 35.5mm x 15mm x 32.7mm (LxWxH)
Voltage Range: 6.0V - 8.4V
