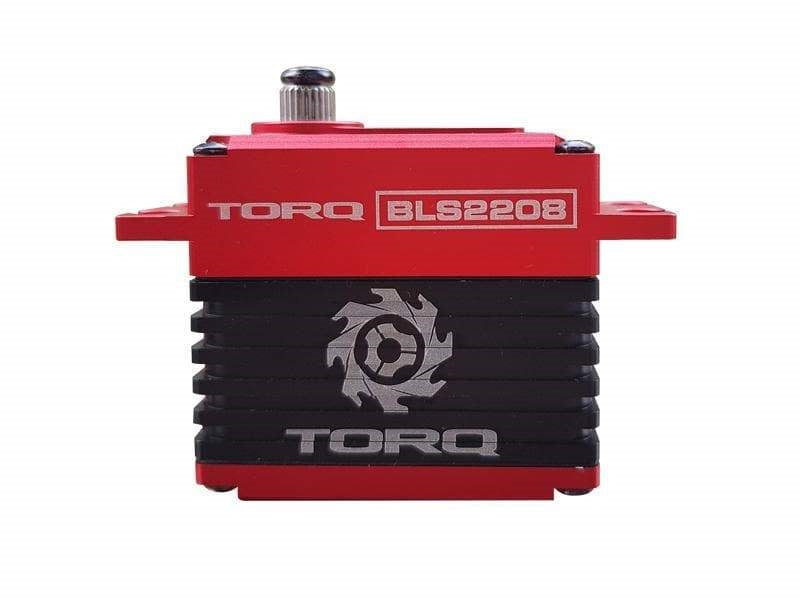

TORQ BLS2208 Full Size HV Brushless Cyclic Servo

TORQ BLS2208 Full Size HV Brushless Servo

Features:

- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction

Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V

Torque:
25Kg.cm / 347.18 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V

Motor Type: Brushless

Servo Arm Type: Futaba

Working Frequency: 1520us / 333Hz

Weight: 78g

Dimensions: 40.5mm x 20mm x 38mm (LxWxH)

Voltage Range: 6.0V - 8.4V
