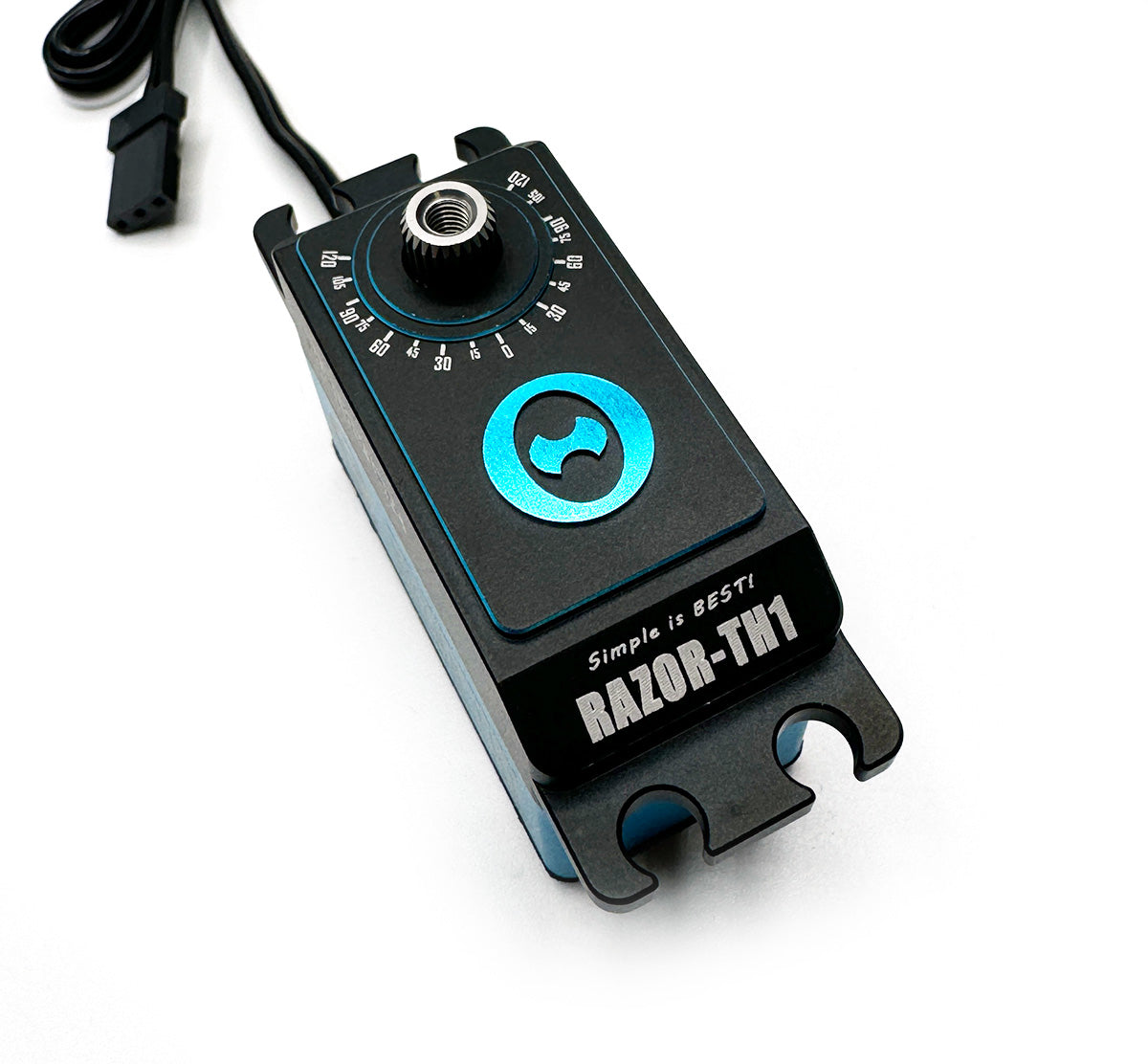

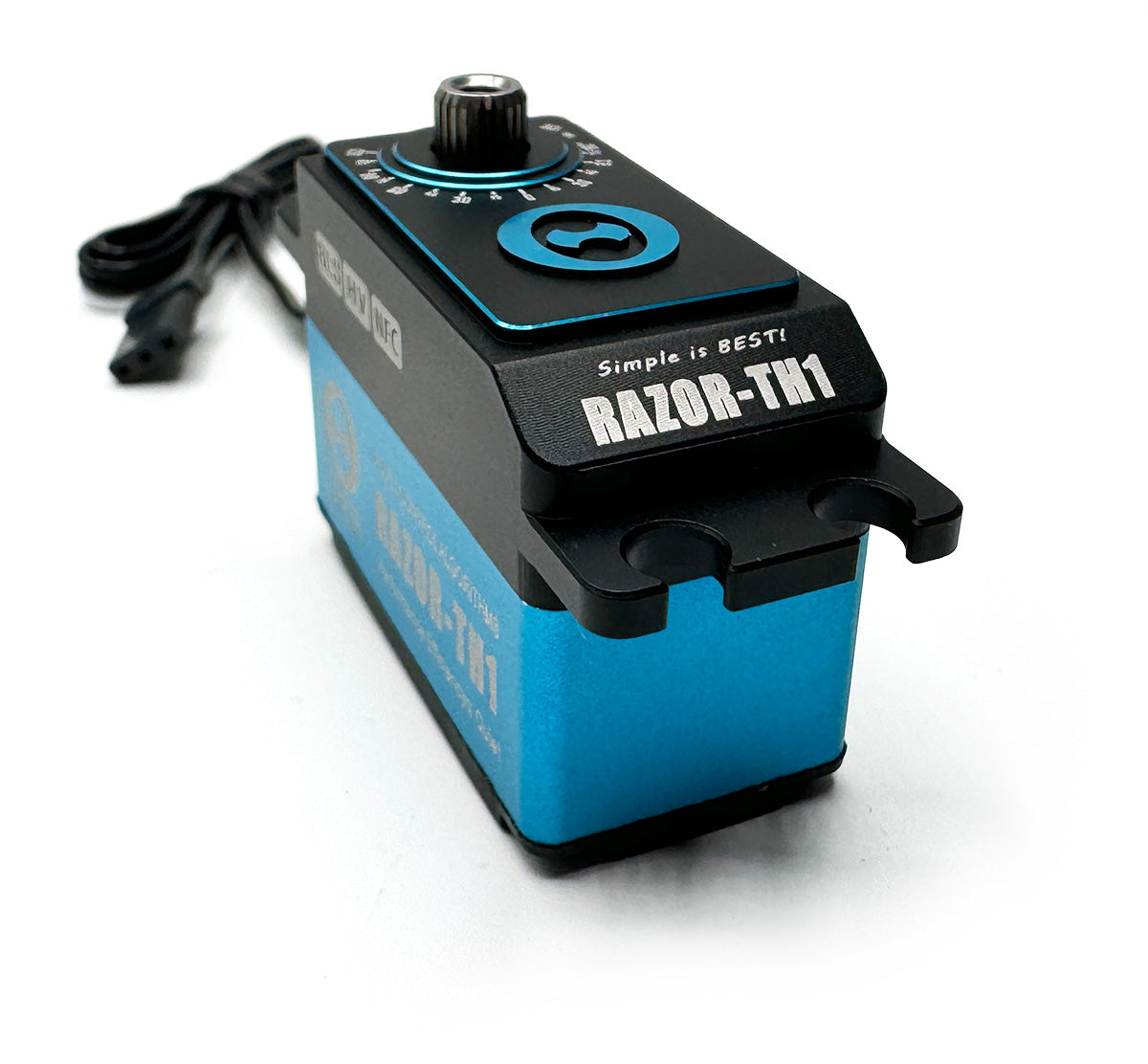

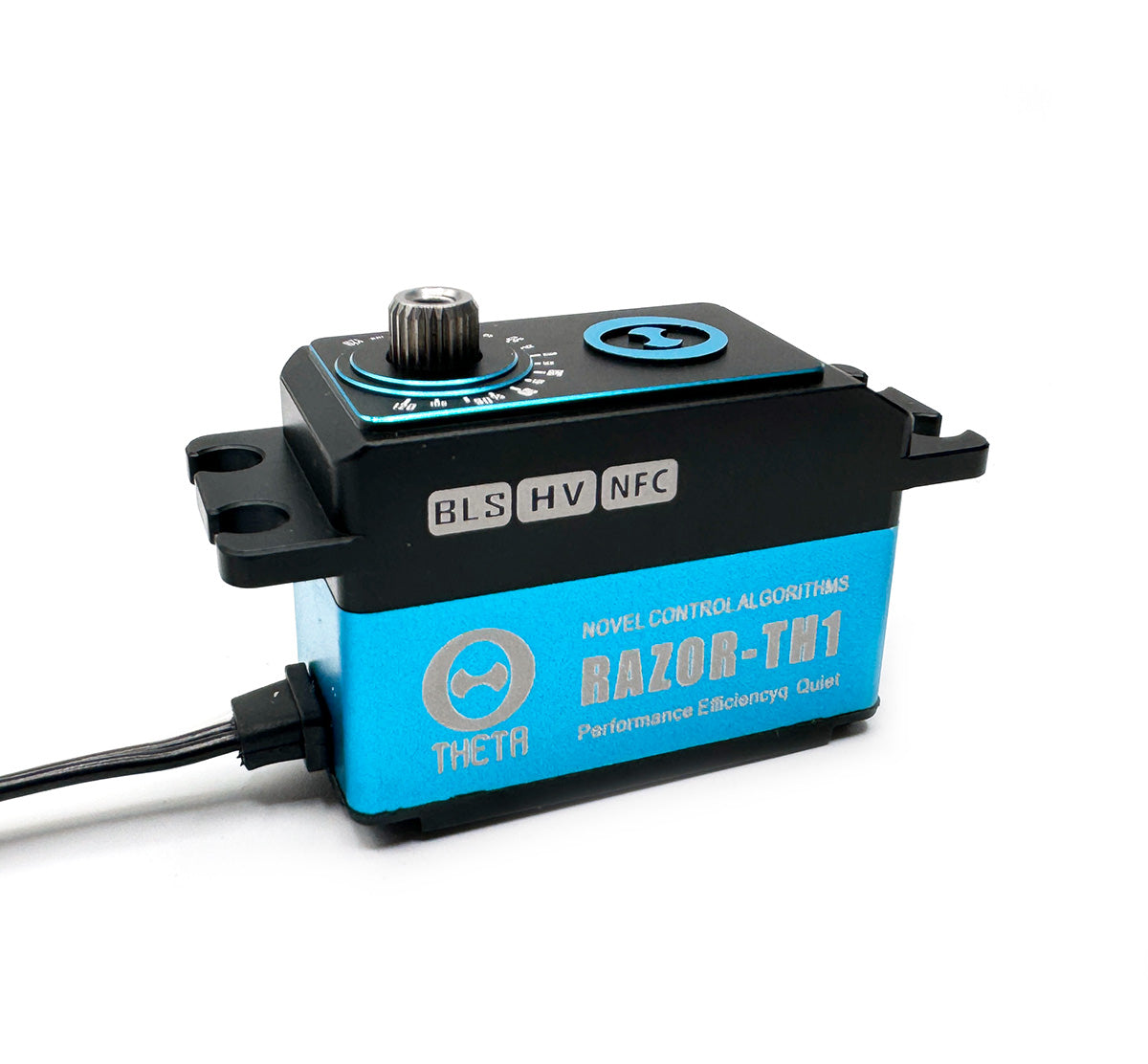

THETA Razor-TH1 NFC HV Low Profile Brushless Tail Servo
Quantity:
High voltage, High-Torque, low profile size brushless servo.
Ideal tail servo for 600-700 sized machines.
The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
|
Voltage (V) |
Current (A) |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.087 |
19 |
|
6.0 |
3.0 |
0.072 |
21 |
|
7.4 |
3.0 |
0.064 |
23 |
|
8.4 |
3.0 |
0.056 |
24 |
|
5.0 |
5.0 |
0.079 |
22 |
|
6.0 |
5.0 |
0.065 |
26 |
|
7.4 |
5.0 |
0.058 |
28 |
|
8.4 |
5.0 |
0.051 |
30 |
