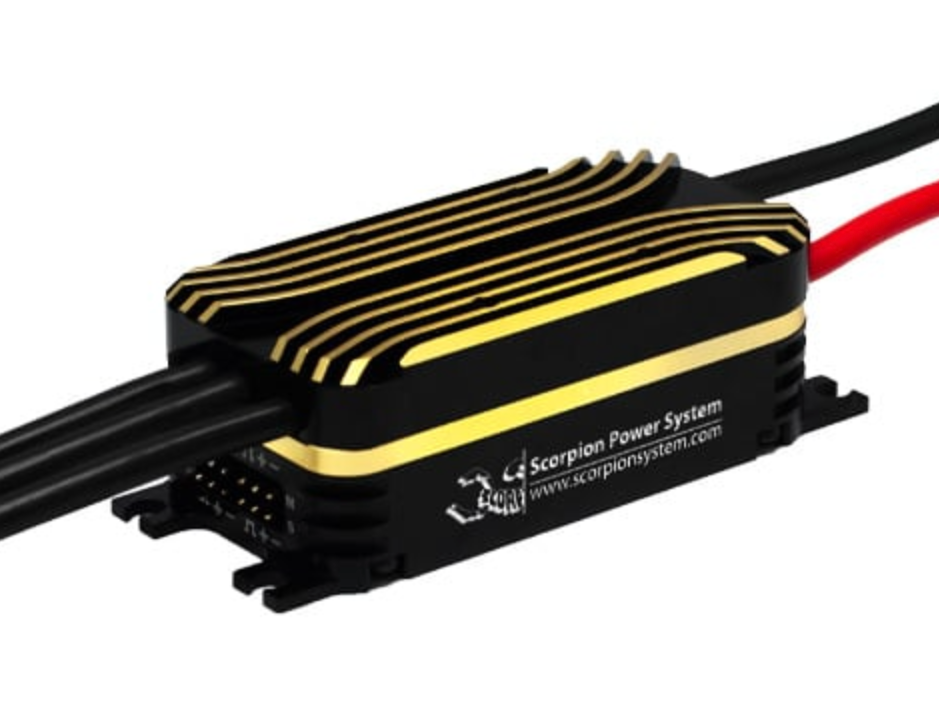

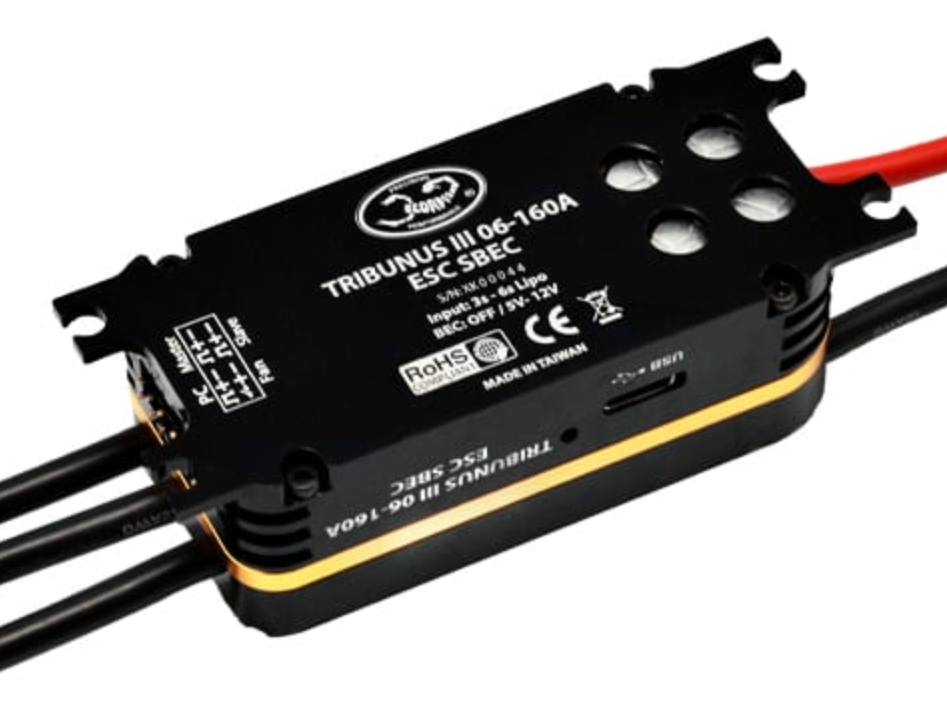

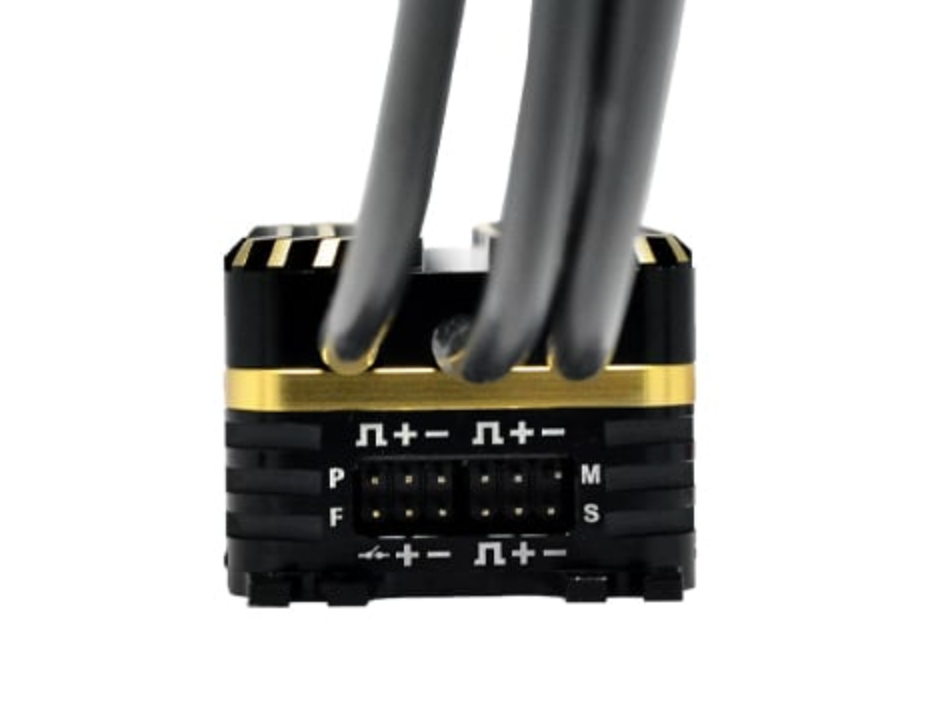

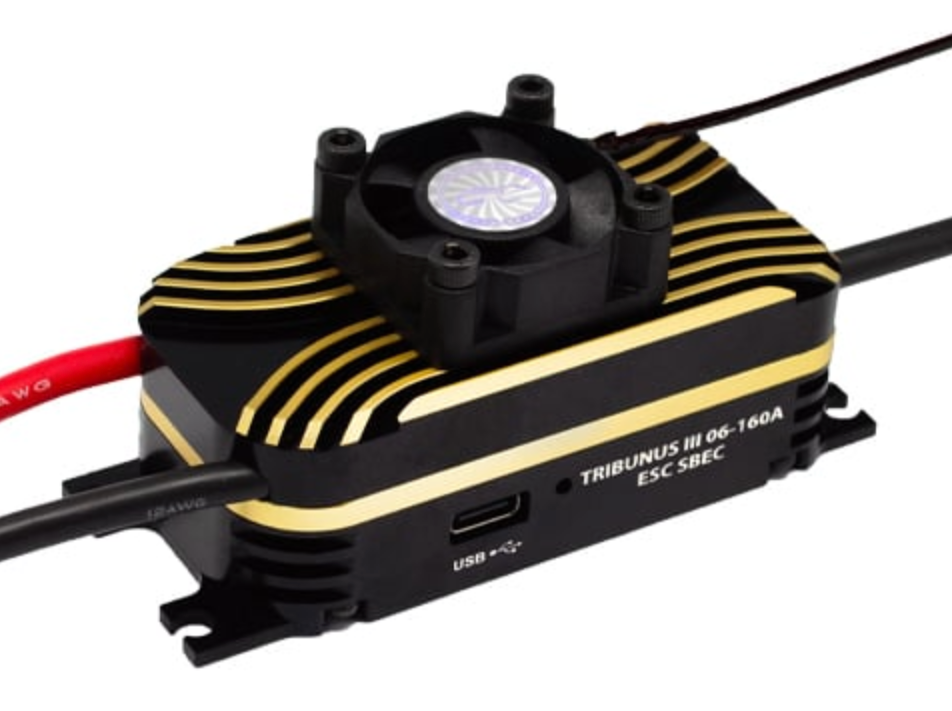

Scorpion Tribunus III 06-160 ESC SBEC

Specifications

• Max Continuous Current 160 Amps
• Peak Current 200 Amps
• Operating Voltage Range 11-26.1 Volts
• BEC Output voltage: 5.1V to 12.1V adjustable
• Max Continuous BEC Output 15 Amps @ 8.1 V
• Peak BEC Output 30 Amps/1s @ 8.1 V
• On Resistance 0.37mOhms * 2
• ESC Body Size 36.5 x 75.0 x 27.0 mm (1.44 x 2.95 x 1.06 in)
• Mounting Tab Dimensions 24.0 x 84.0mm ( 0.944 x 3.30 in) / M3 Bolt
• Weight (Without Connectors) 155g ( 5.47oz)
• Drive frequency 8kHz - 32kHz

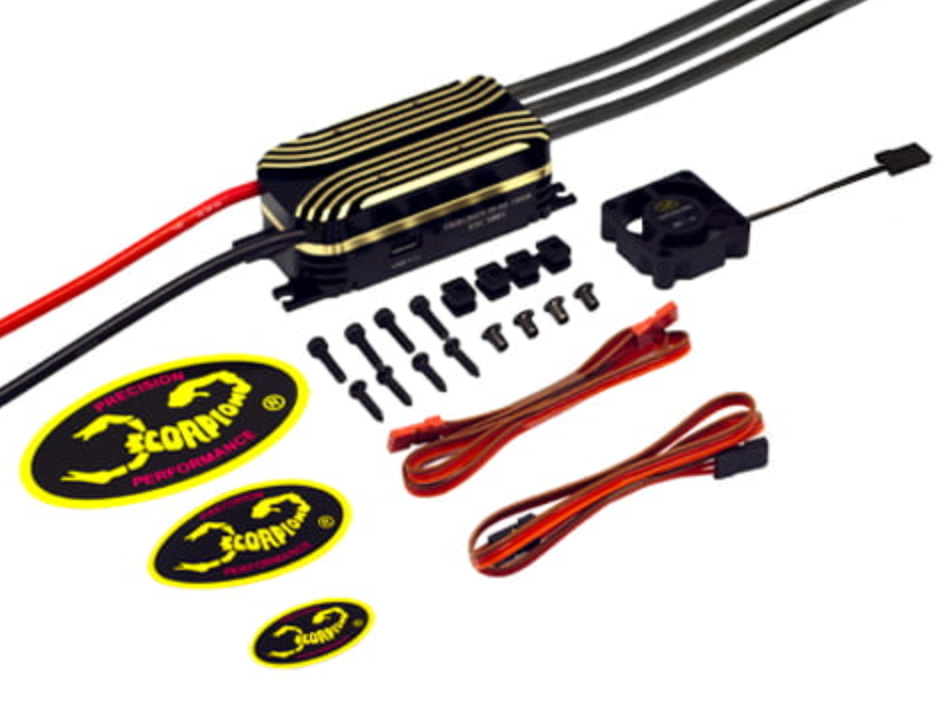

Included in the Box

1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
1 x Mounting Hardware Pack
