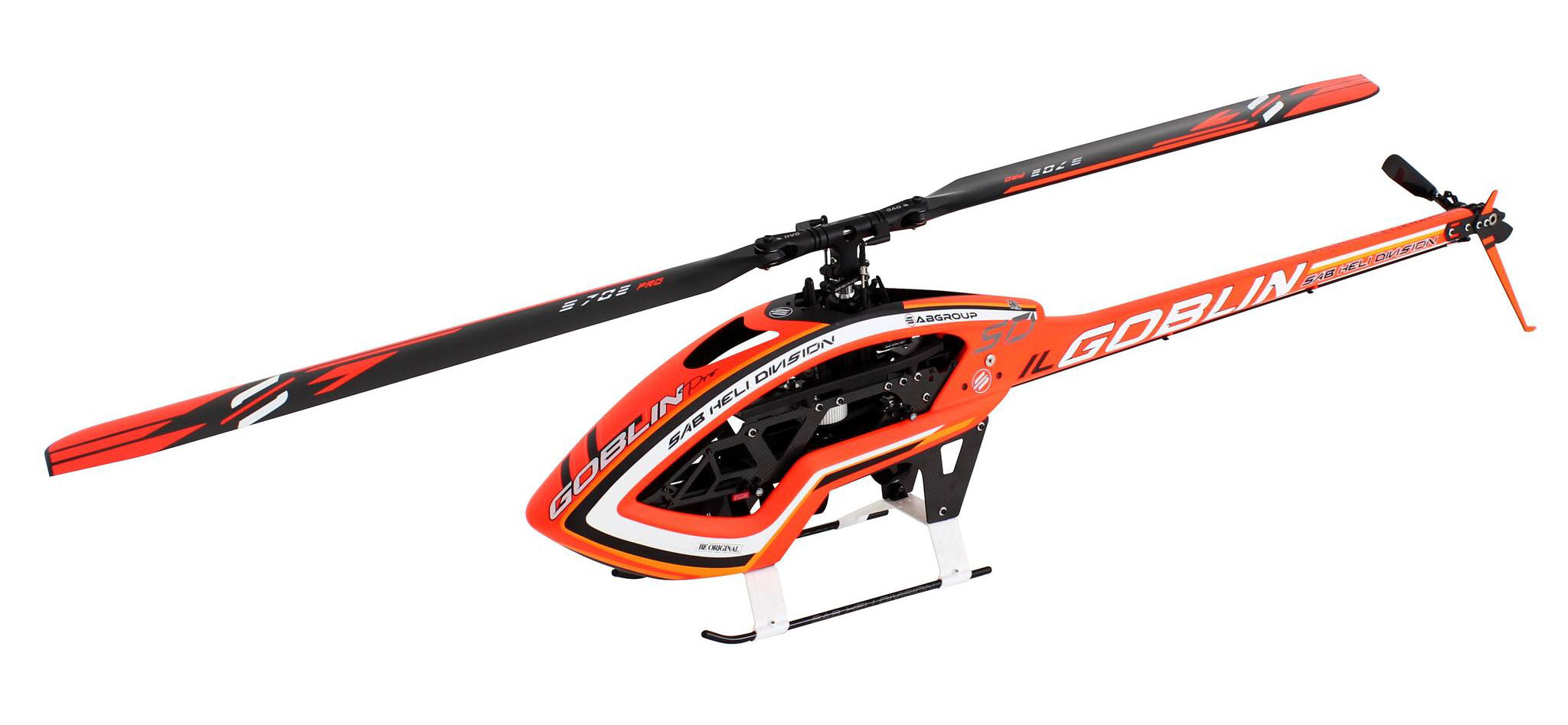

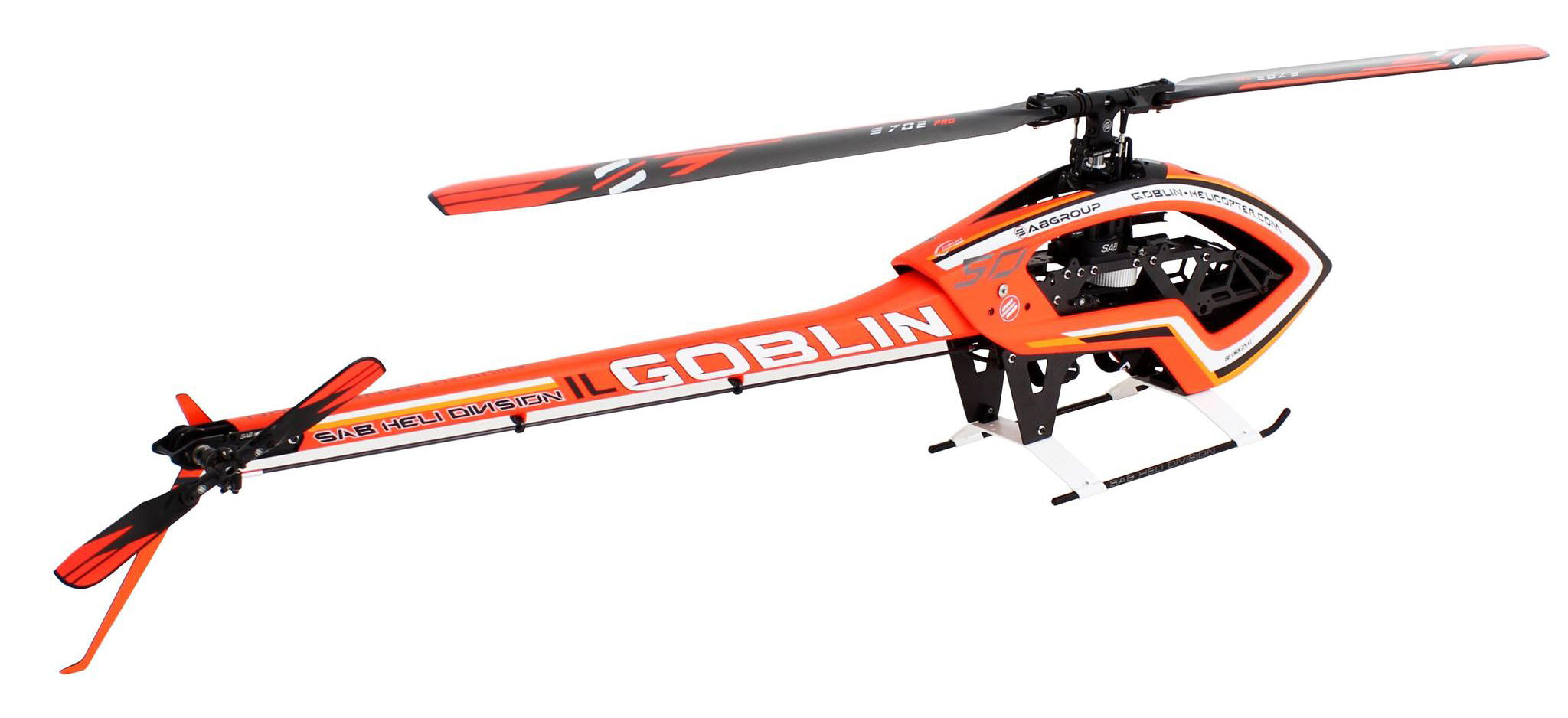

SAB ilGoblin 700 Pro (Orange)
SAB ilGoblin 700 Pro (Orange)

SAB ilGoblin 700 Pro (Orange)

$1,138.00
SKU: SG760
Quantity:

The latest and greatest flagship model from SAB. The ILGoblin Pro represents a significant technological advancement in RC helicopters, with a complete redesign compared to previous models. Here are the main innovations:

Main transmission:

  • The main transmission is based on the Goblin gearbox, now further improved
  • The main shaft diameter is now 15 mm for increased rigidity
  • New helical gears for increased durability and strength
  • New One-Way system, redesigned for optimal performance
  • A fast disassembly servo mount that allows for easier and faster maintenance
  • The new gearbox is lighter than previous models

Rotor head:

  • New design that features new blade grip arms with an improved locking system
  • Self-Centering Titanium washers that ensure automatic centering for greater precision
  • Pivot shaft for the spindle allowing customization of rigidity and maximum movement

Tail rotor:

  • 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail
  • The shaft and the hub are made from a single part in order to have maximum precision
  • The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preference

Tail boom:

  • Made with high-pressure molding technology and its weight is only 180 gr.
  • Includes a belt tensioning system with an indicator for optimal control

Canopy and blades:

  •  Batteries can be installed from the rear with quick connectors eliminating the need to remove the canopy.
  • The blades in the kit are the new S702, with new profile and dynamic performance, color-matched to the canopy
  • The tail blades are S110 with a new design for improved performance.

Specs:

  • Airframe weight: 2178 gr (no blades, no battery, no electronics)
  • Main rotor diameter: 1576 mm (with 700 mm blades)
  • Main blade length: 650 to 730mm
  • Tail rotor diameter: 292 mm (with 110 mm tail blades)
  • Tail blade length: 105 to 115 mm
  • Cyclic Servos: Standard size 40mm
  • Tail Servo: Standard size 40mm
  • Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
  • Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
  • Main shaft 15 mm, Tail shaft 8 mm
  • Molded carbon tail boom
  • Motor 12S, 480/560 KV
  • Battery room: 50x60x300 mm

Kit Includes:

  • 21T motor pulley (other pulley sizes available)
  • 2 battery trays with integrated connectors
  • S702 Orange (700 mm main blades)
  • S110 Orange (110 mm tail blades)
