SAB Genesis Sport (Mini Version)
The all new Genesis Sport mini version is based on the already proven design of the Raw 420 competition. Sharing the same mechanics, transmission, head and tail, the Genesis Sport "mini" offers better visibility making it ideal for those who prefer an easier to see, sport flying or mild 3D flying machine.
This helicopter can run on any motor size ranging from 2820 to 3220 and KVs ranging from 800 to 1000. With a variety of motor pulleys you now have the freedom to fine tune your head speed based on your motor of choice.
This helicopter is a breeze to build, it has a very low parts count and has many other cool features like a new and improved tail push rod that is very easy to put together, an integrated flybarless system antenna mount and much more.
This helicopter is designed to run on a 6s pack ranging from 2200 to 2700 mAh and comes with blades. You simply need to get a motor, servos (micro cyclic & mini tail), an ESC and a flight controller! We recommend either the HobbyWing 60 or 80 amp controllers or the Scorpion 06_80. All of these are excellent choices, if you are planing on doing mild 3D or sport flying, the HobbyWing 60 is the best choice, for harder 3D, then the 80 amp ESCs are preferred.

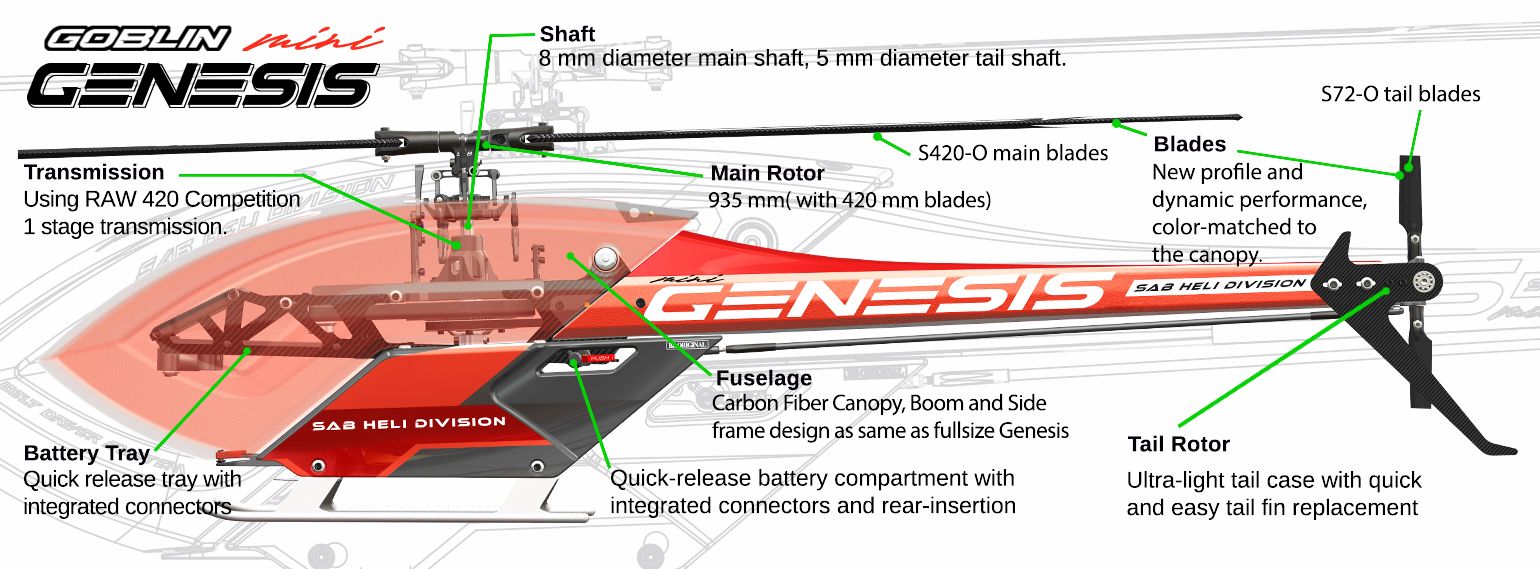

- Main rotor diameter 935mm (with 420mm blades)
- Main blade length 380 to 420mm
- Tail rotor diameter 190mm (with 70mm tail blades)
- Tail blade length 60 to 70mm
- Micro size cyclic servos (23mm)
- Mini size tail servo (35mm)
- Maximum battery size: 140x40x50mm (max)
- Recommended battery: 6s 2200/2700 mAh
- Recommended motor: 3020 – 3215 – 3220
- Recommended KV motor: 900-1000 KV
- Recommended battery weight: 350-420 grams
- Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
- Tail rotor ratio 4:1
- 8mm main shaft
- 5mm tail shaft

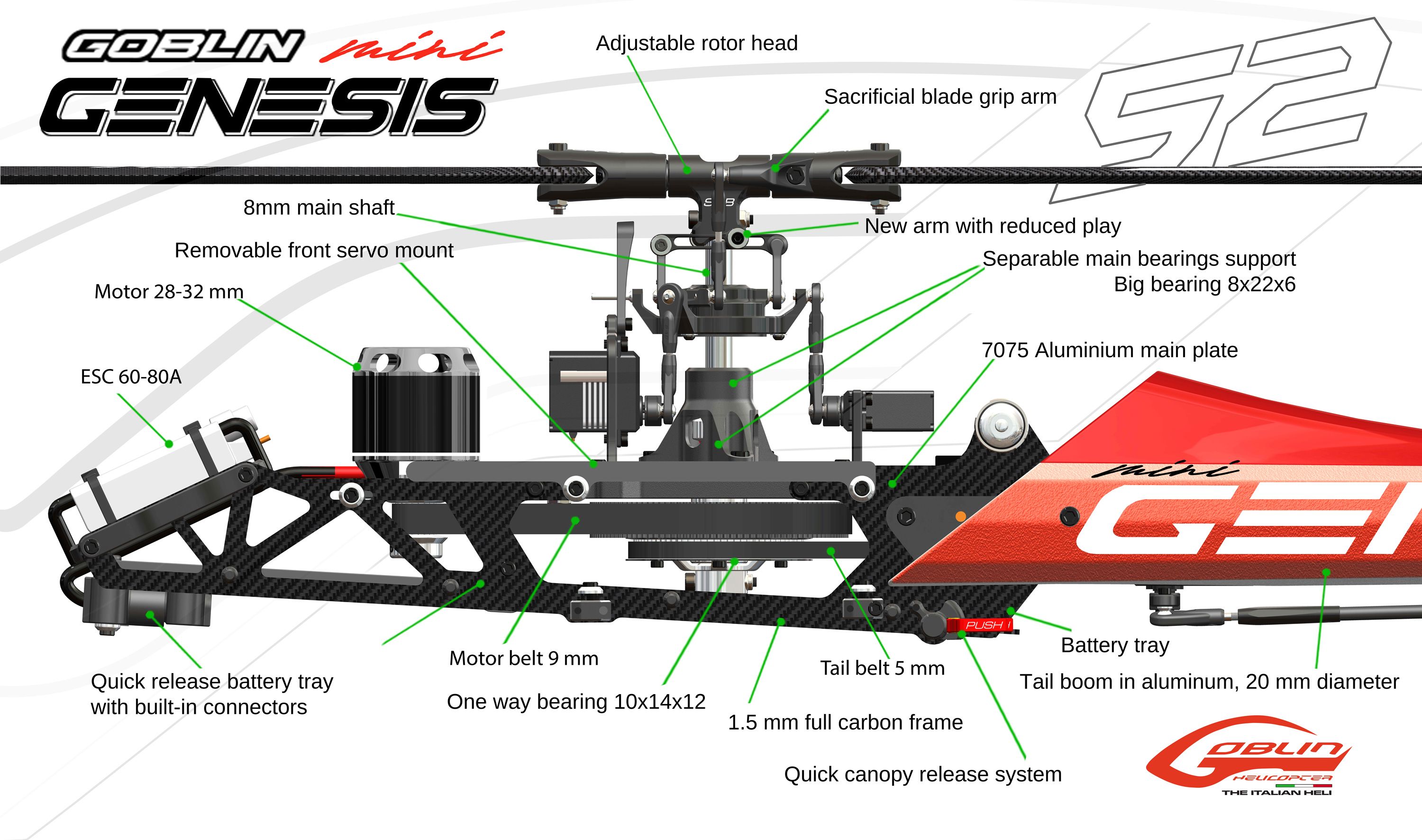

Main Features:
- Quick release battery tray with integrated connectors
- Zytel HTN resin blade grip arms (sacrificial)
- It is not necessary to remove the canopy to replace the batteries.
- Main ratio 1:5/6
- Tail ratio 4:1
