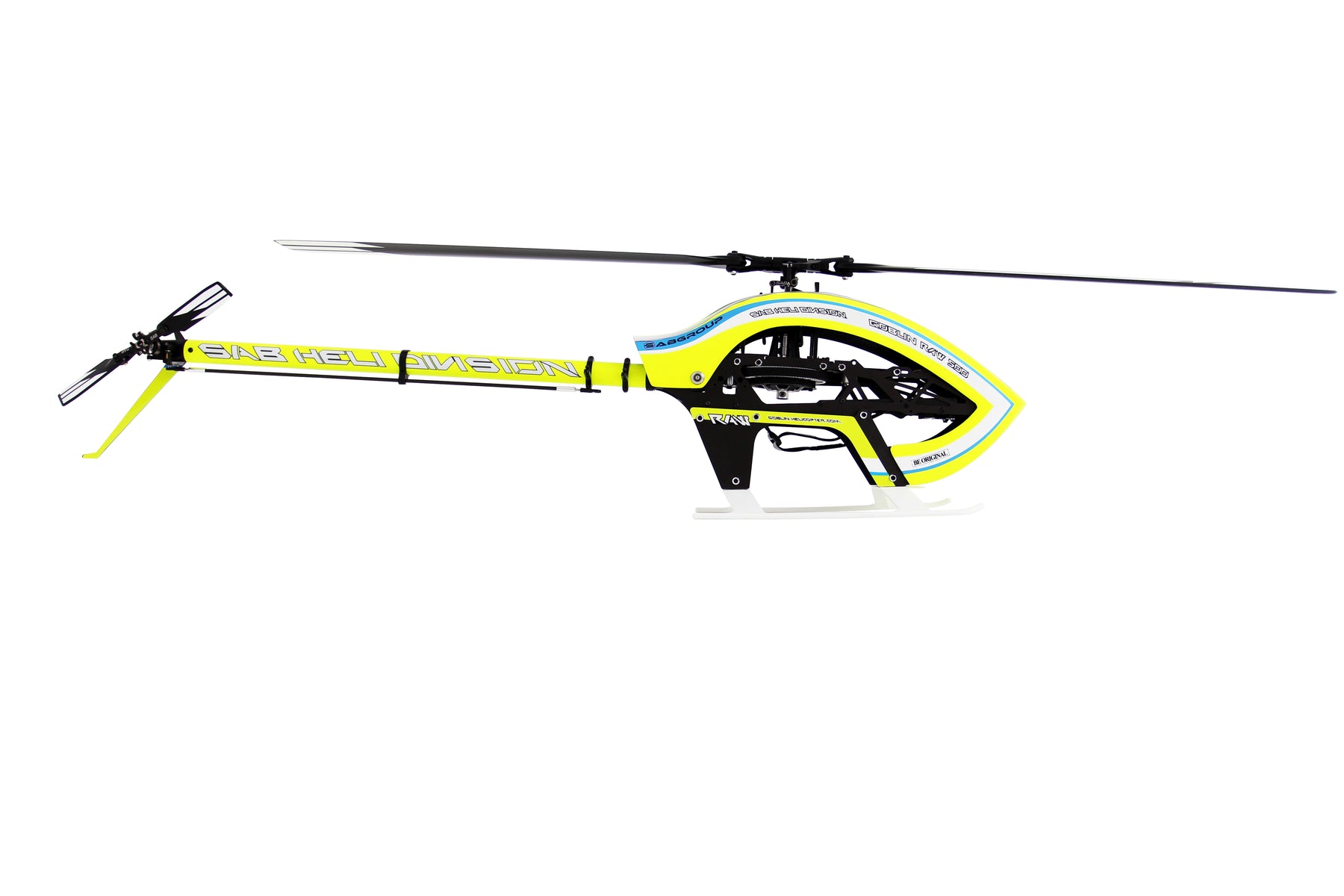

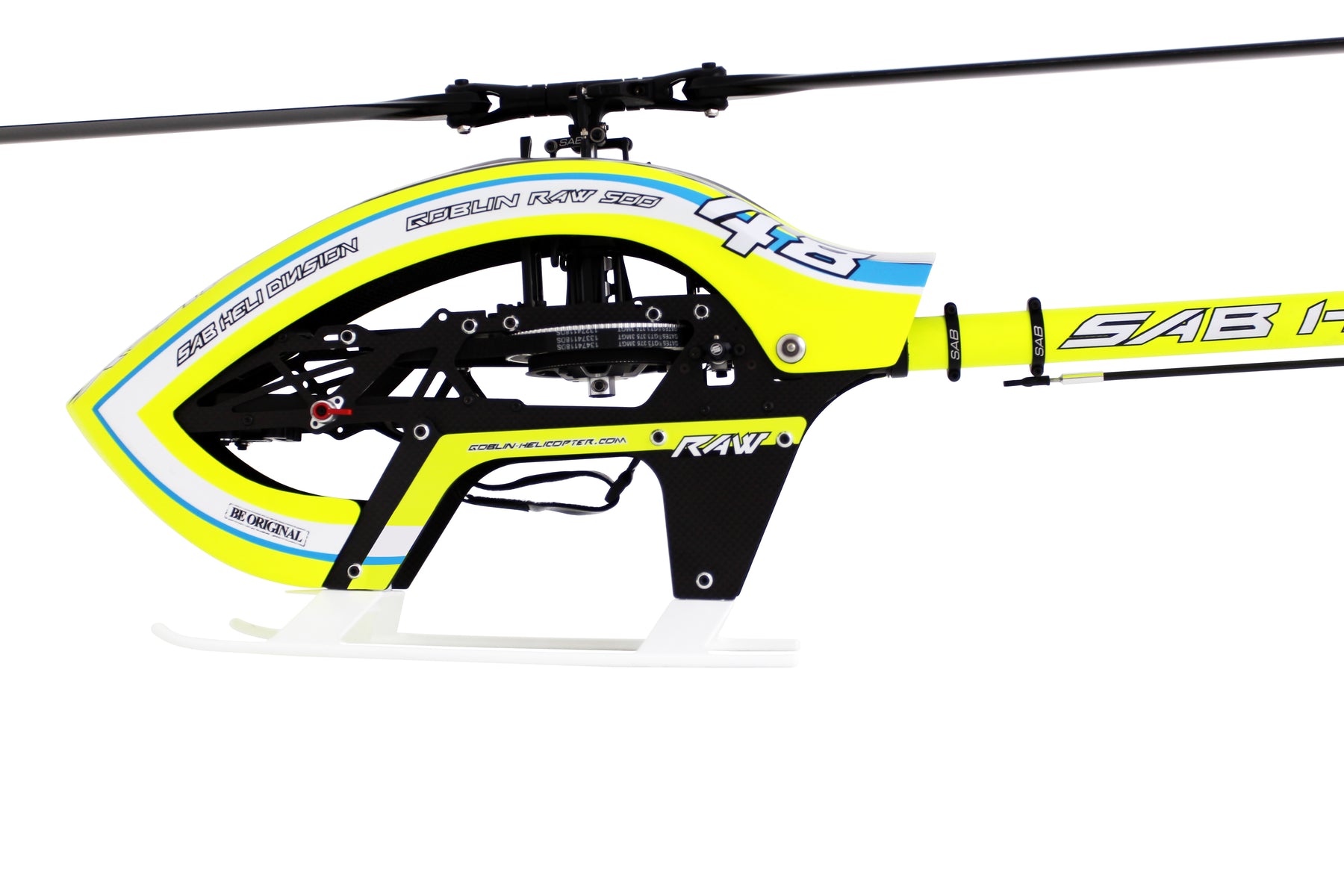

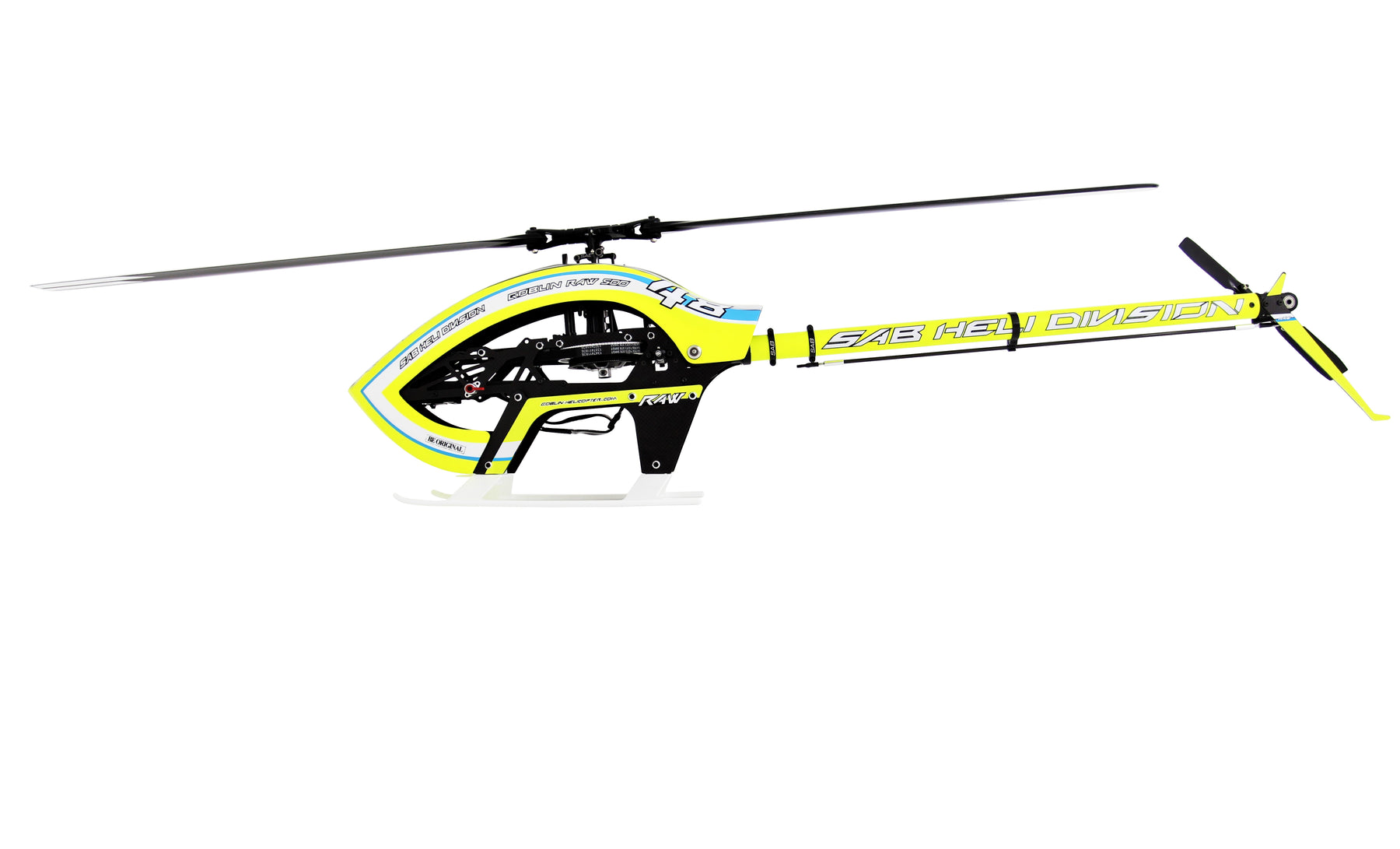

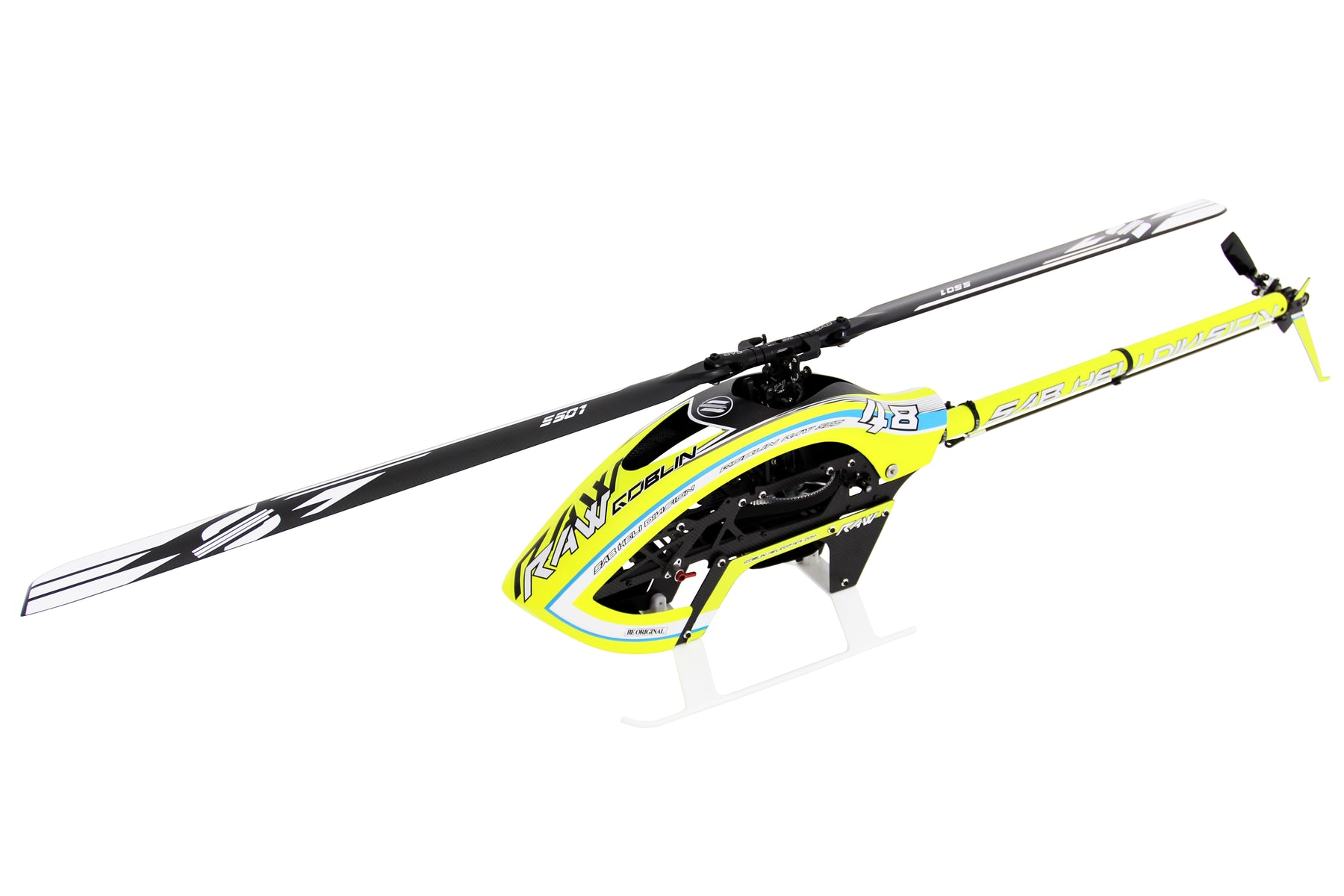

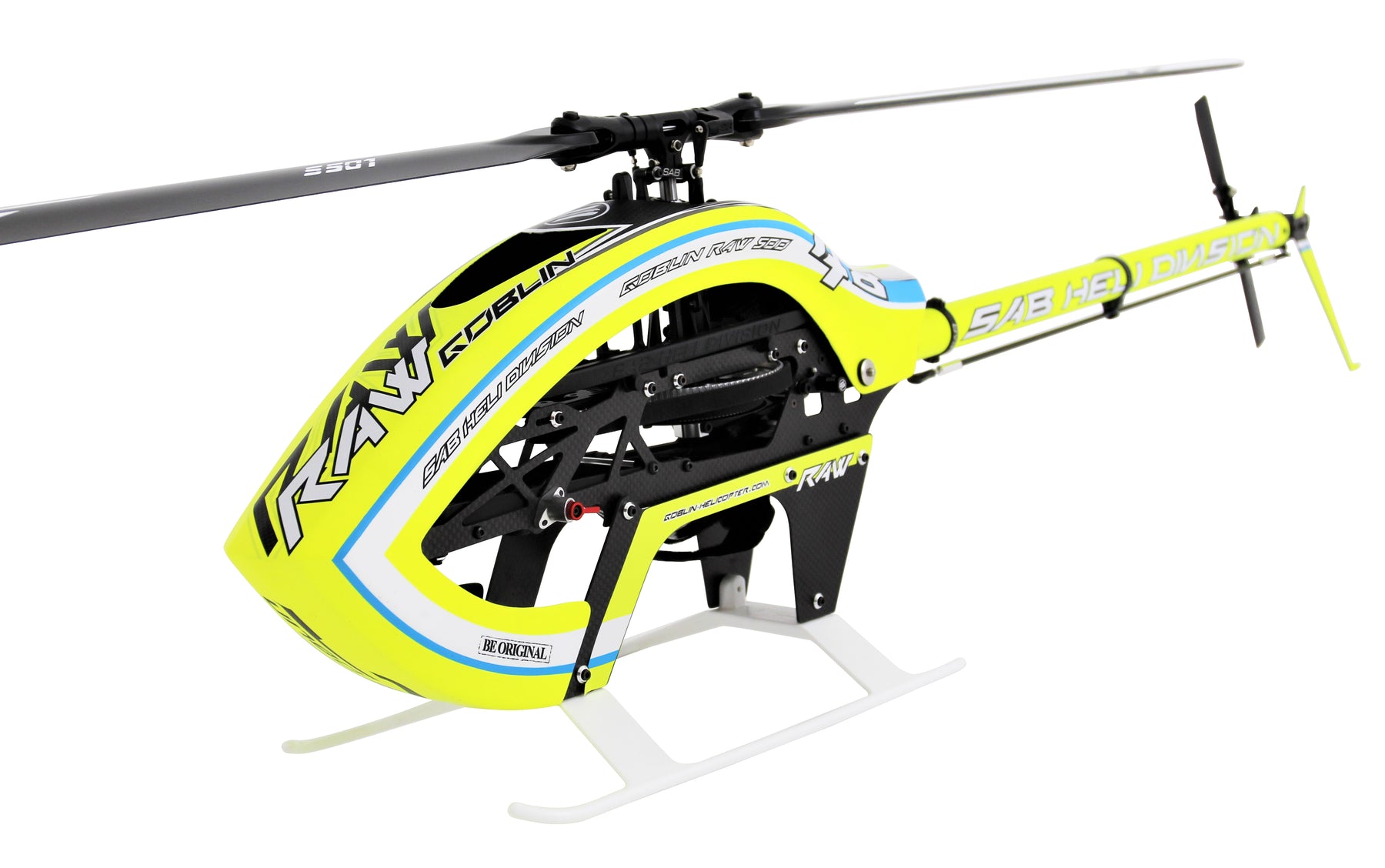

Goblin Raw 500

The Raw 500 is the latest SAB helicopter. This little machine is the ideal size, not too small, not too big! Enjoy flying in smaller fields while getting the "feel" of a much larger machine. Excellent for sport flyers as well as hard core 3D pilots!

Specifications

• RTF weight without battery 1824g
• Main rotor diameter 1180mm (with 500mm blades)

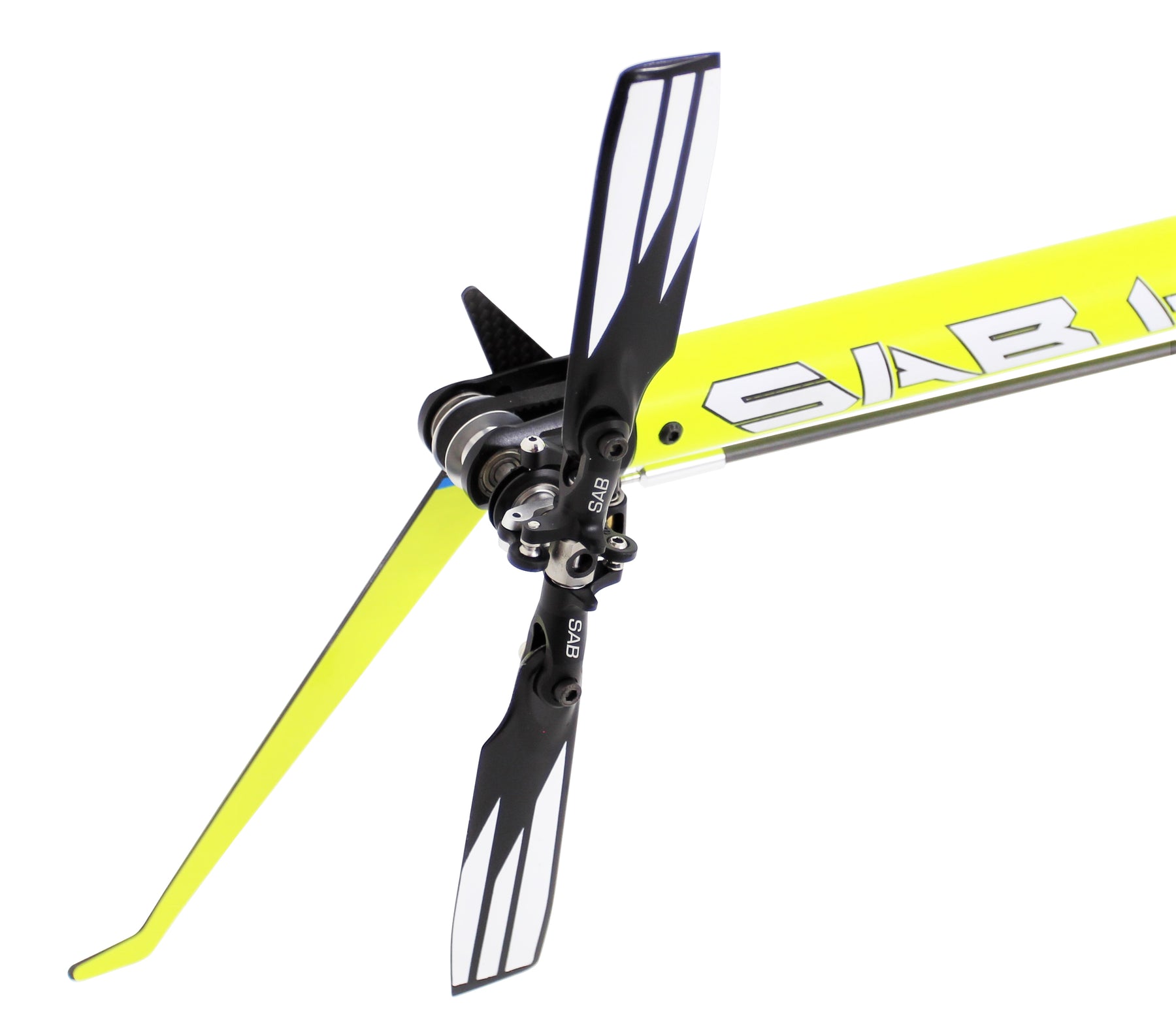

• Length of the tail blades 80mm
• Mini size cyclic servos (35mm)
• Mini tail servo (35mm)
• Maximum dimensions of the battery 48x48x150mm
• Recommended battery 6S 3300/3700 mAh
• Recommended battery weight 550-600g
• Recommended ESC 6S-120A
• Motor size 4020 (800-900Kv)

Main Features

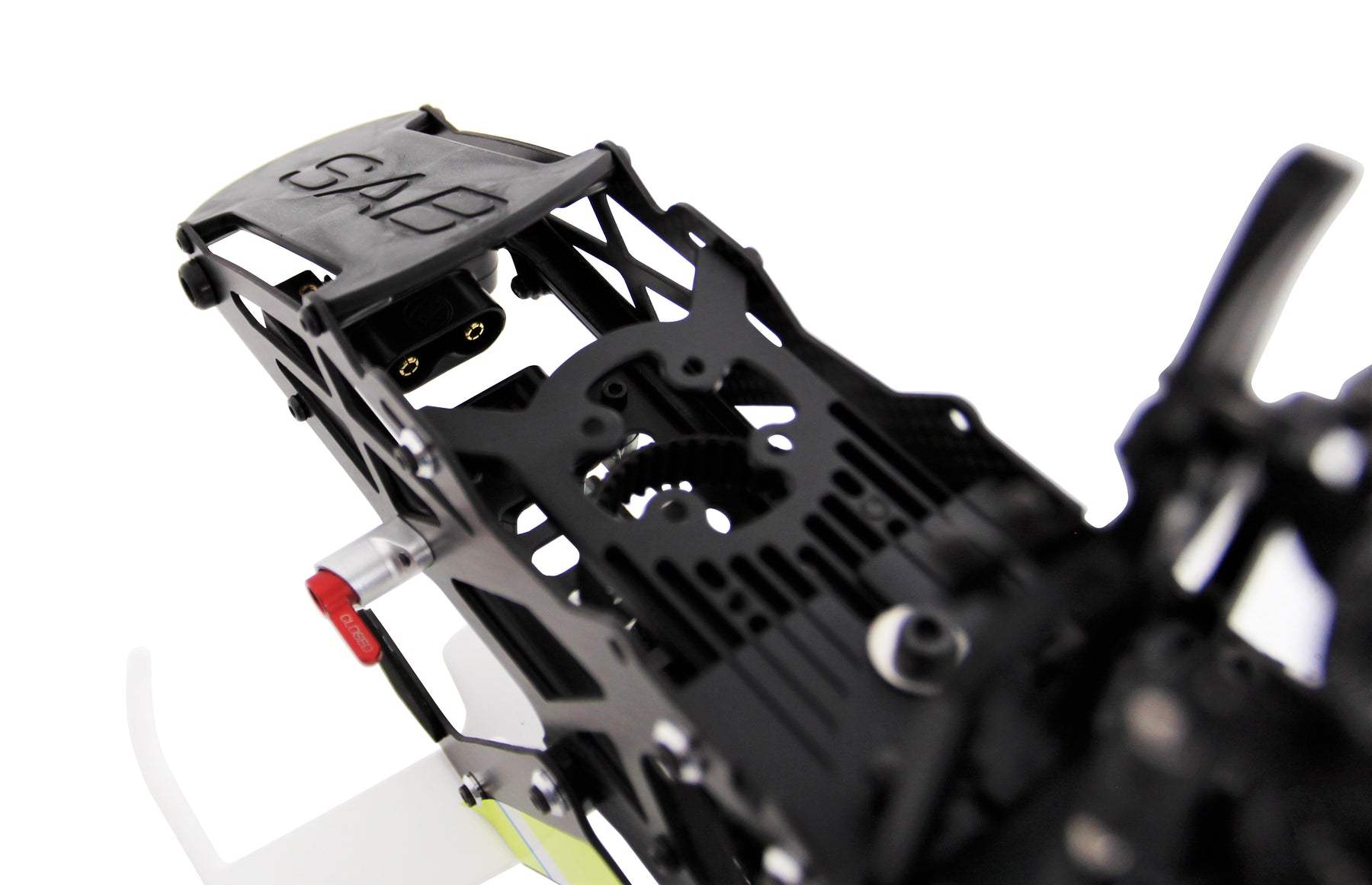

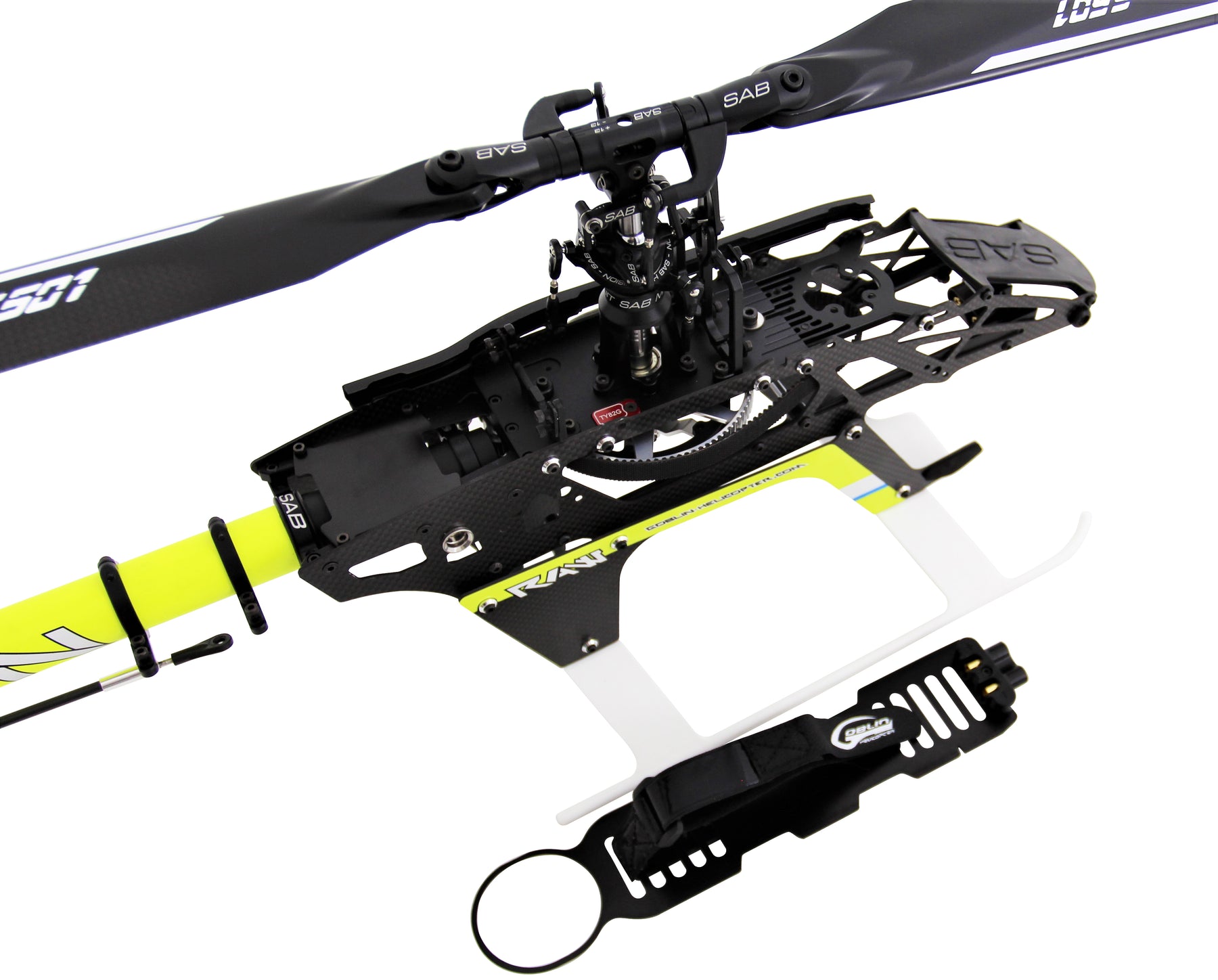

• Quick release battery tray with integrated connectors
• Zytel HTN resin blade grip arms (sacrificial)
• It is not necessary to remove the canopy to replace the batteries

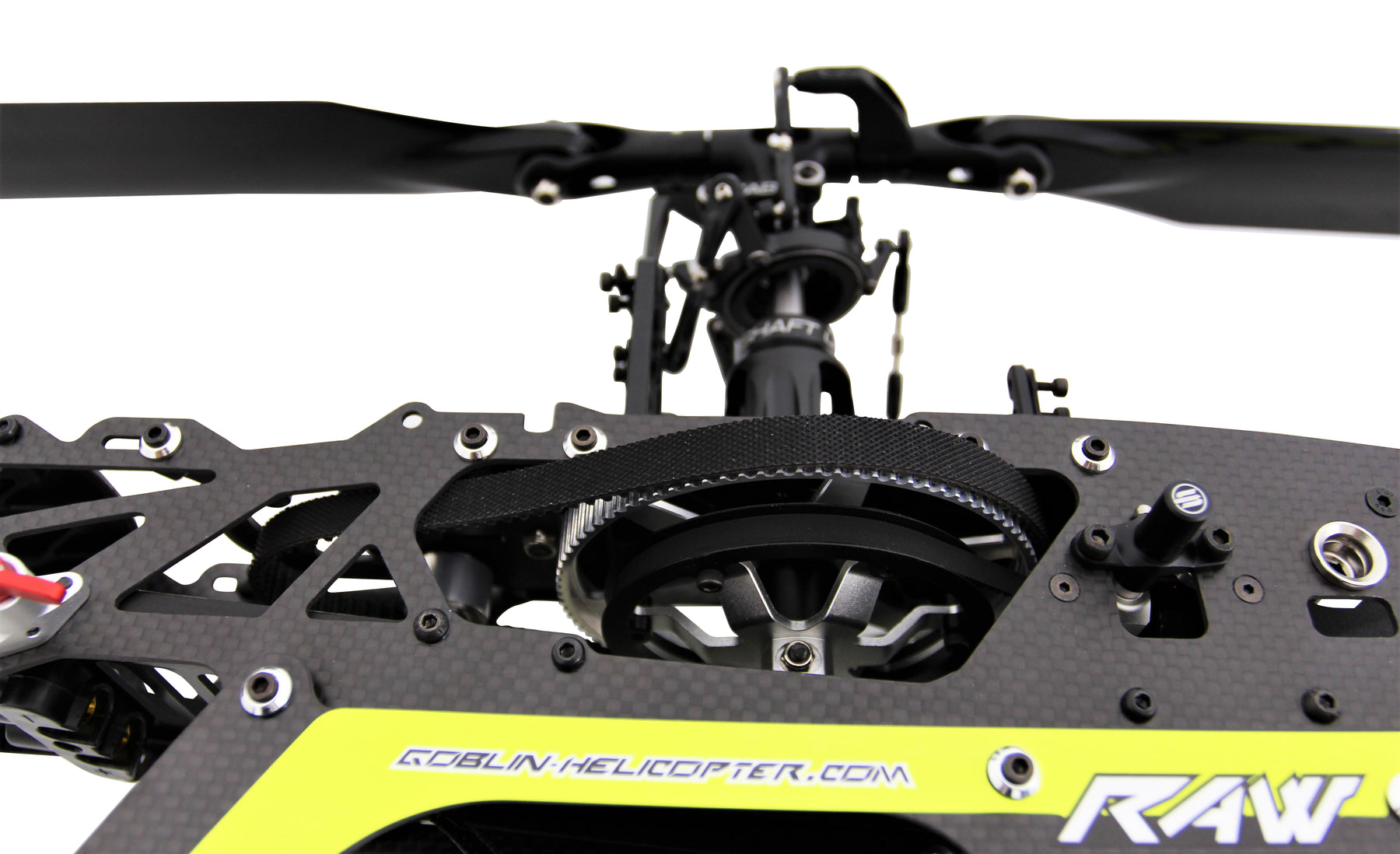

• Main ratio 1:5/6

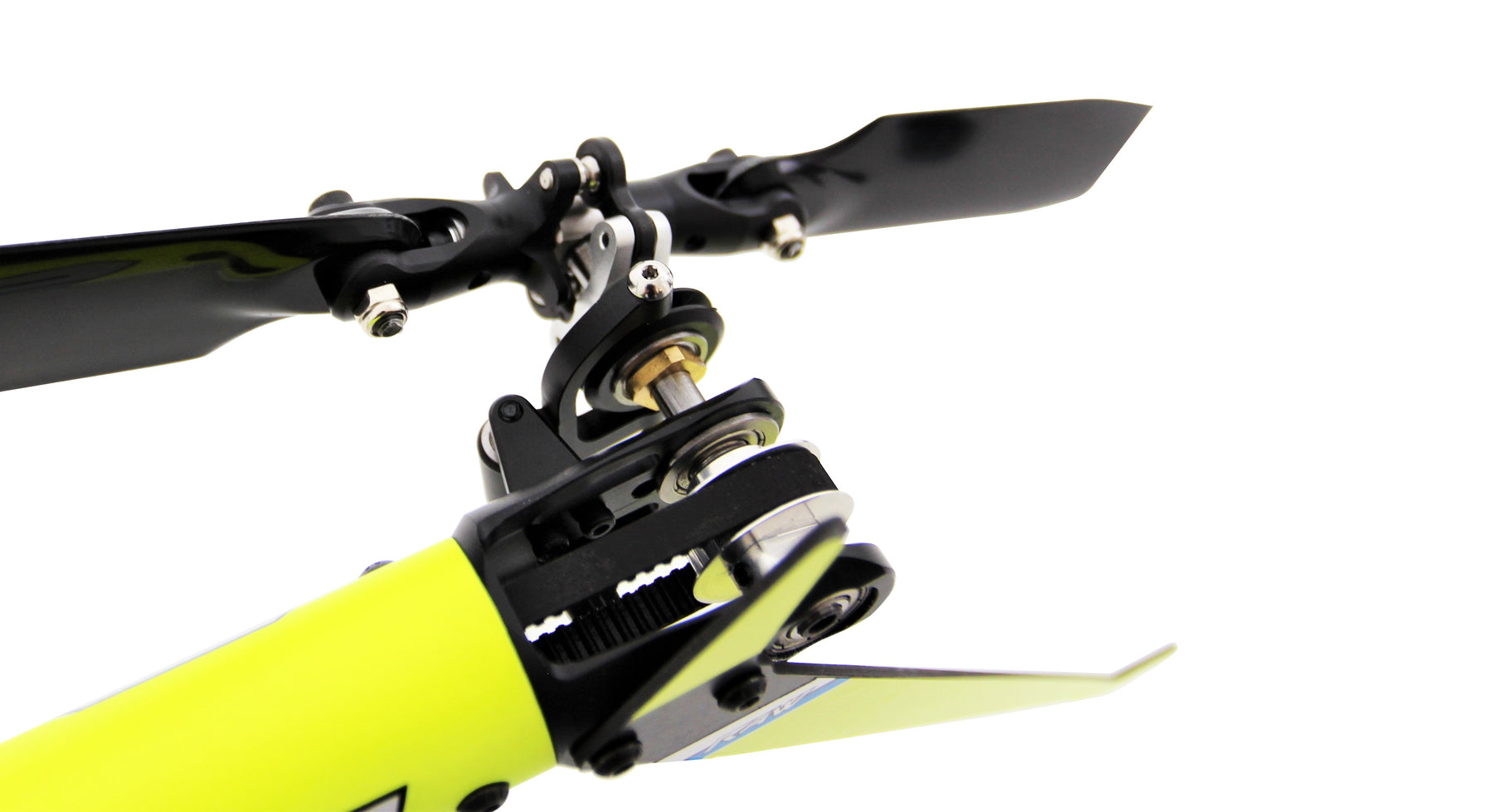

• Tail ratio 4:1
